Add more I/O to your Avid S6L and Avid S3L live mixing system.

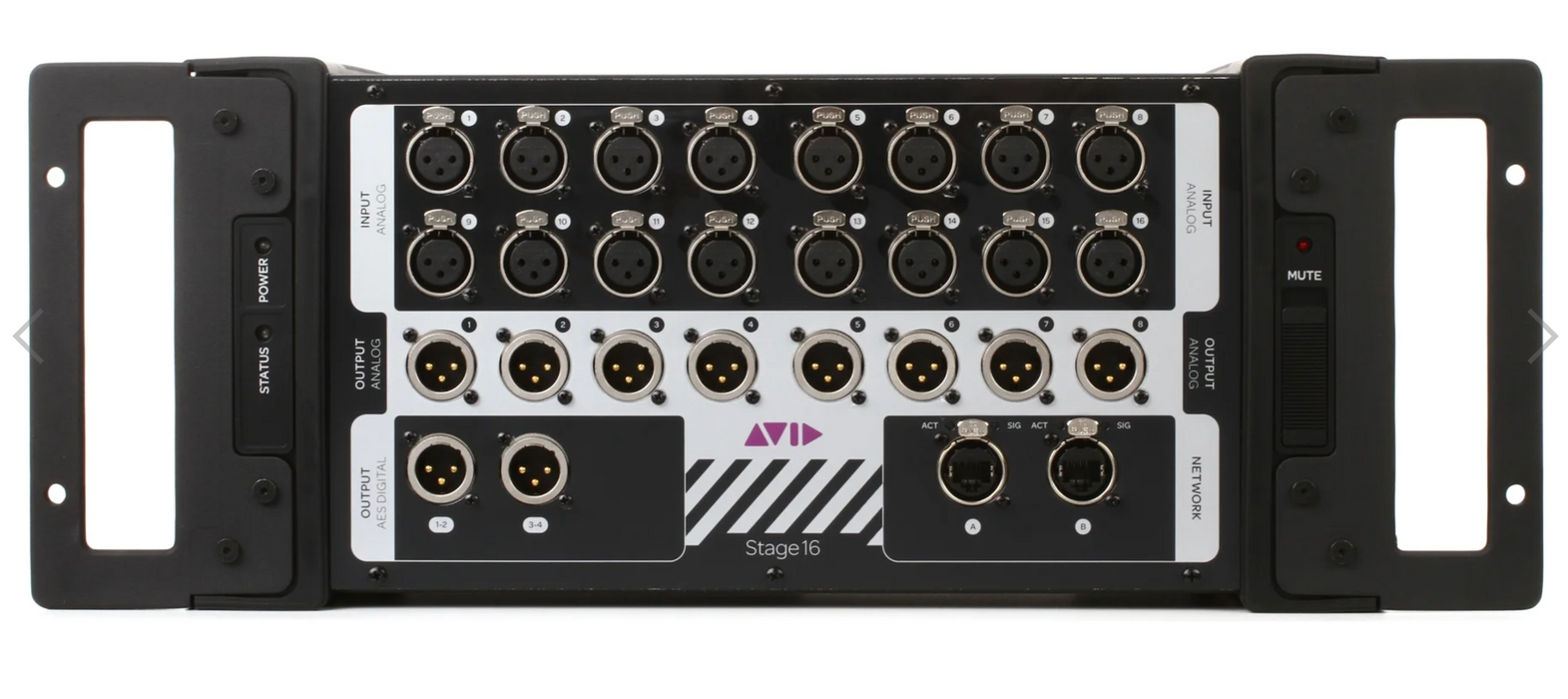

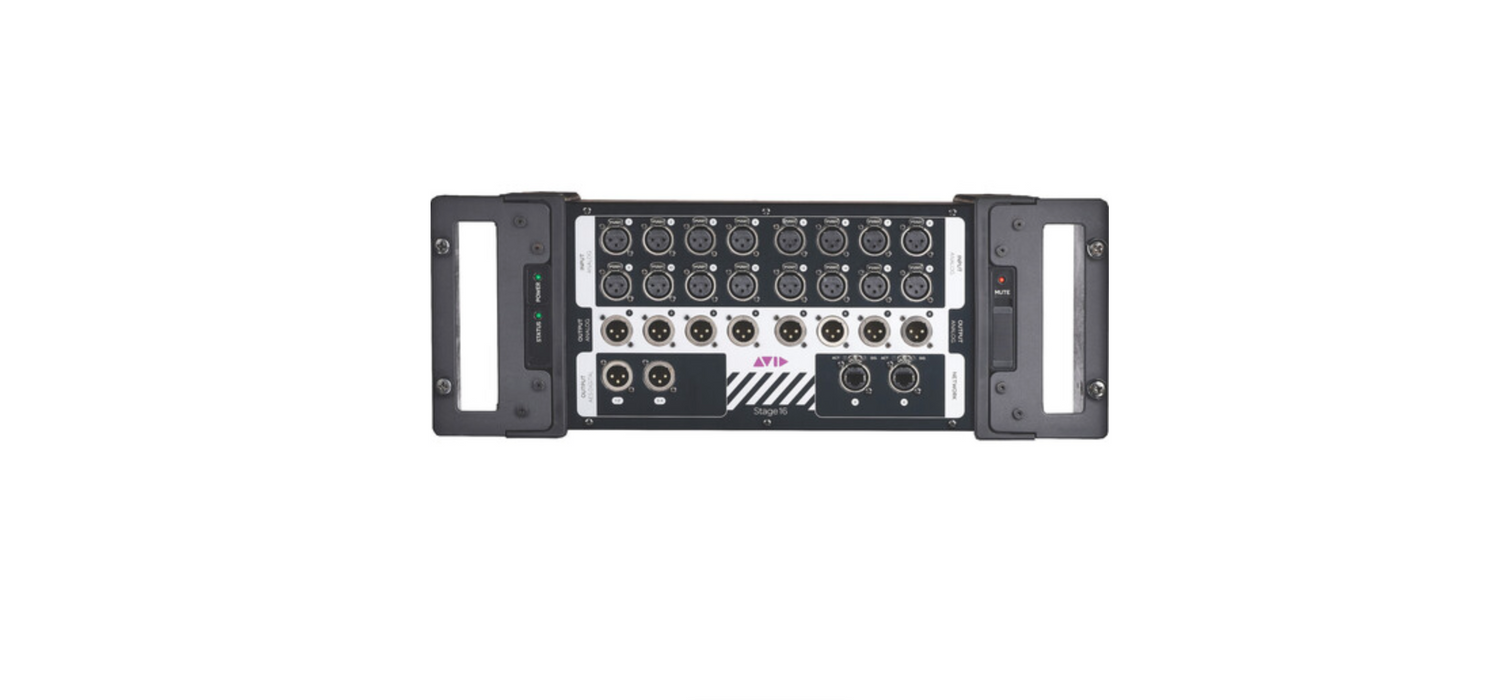

Connect up to 16 inputs for small live productions or expand and distribute I/O in any performance space with this compact I/O rack.

CHARACTERISTICS:

16 analog inputs with remote microphone preamp control
8 analog line outputs
4 AES3 digital output channels
Dual-use rack ears allow for both floor placement and robust rack mounting
2 gigabit Ethernet AVB ports

Network multiple Stage 16 racks together, up to the maximum number of inputs supported by your chosen E6L engine.
Network the Stage 16 with one or more Stage 64 or Stage 32 racks for more flexibility in I/O distribution.

Technical specifications

Type: Digital Stage Box
Compatibility: AVID S3L, S6L
Channels: 16 x 8
Inputs - Microphone preamps: 16 x XLR
Phantom Power: 16
Outputs - Main: 8 x XLR (Analog)
Outputs - Digital: 2 x XLR (AES/EBU)
Data I/O: 2 x etherCON (Network)
Computer Connectivity: Ethernet
Software: AVID Venue
Rack mountable: Yes
Power supply: Standard IEC AC cable
Height: 6.9"
Depth: 8.1"
Width: 19"
Weight: 15.8 lbs. (approximately 7.17 kg)
Manufacturer Part Number: 9900-65400-01
